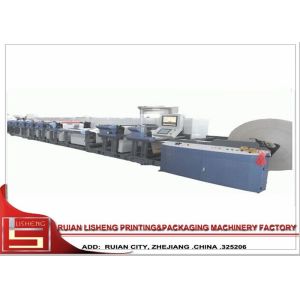

automatic horizontal Flexo Printing Unit for coated paper / cardpaper , 1-10 Color
Specifications:
flexo machine
roll to roll
resin plate
to printi various material
Features:
1. Unit-type press in horizontal arrangement
2. Technology up to world level
3. advanced PLC system, automatic tension controller, web guide, LCD image inspector, IR/UV drying units, ensure an accurate registration and perfect printing result.
4. it also has an easy connecting with various functional devices, such as nonstop web changing system, coding, round-to-round die cutting, creasing, embossing, slitting, waste edge rewinding, vacuum waste removing, delaminiting-printing-laminating to stickers, sheeting, double-face printing, gravure printing, screen printing, cold foil stamping, cold laminating, side-hole punching/latitude perforating/fan-folding to computer forms.
5. it is widely fit for many materials printing, such as paper, coated paper, cardpaper, kraft, tissue paper, sticker, foil paper, BOPP/PET/PE/PVC film, even nonwoven cloth, etc..
6. it mainly uses environment-friendly ink, water based ink and UV ink, namely, a kind of GREEN printing machinery.
7. it is esp. suitable for packages printing in food, medicine, beverage industries, and corrugated carton, tag, label industries.
OPTIONAL FUNCTION DEVICES:
cassette design in printing stations
non-stop changing unwinder
anti-static bar
corona system
delam & relam self-adhesive labels
reverse printing with turn bar
UV glazing system
cold lamination/foil stamping
vacuum web cleaner
ink pump
enclosed doctor blade system
rotary die-cutter
creasing/embossing/punching/fan-folding
sheeter
slitting
electronic hoist
multiple waste take-up
conveyor
rear rectifying systemimported from America
2nd pass printing
in-line gravure/screen printing
Technical Parameters:
| MODEL | YH810 | YH1000 | YH1200 |
| Max.Web Width | 825mm | 1015mm | 1215mm |
| Max.Printing Width | 810mm | 1000mm | 1200mm |
| Max.Die-cut Width | 810mm | 1000mm | 1200mm |
| Printing Repeat Length | 260-710mm | 260-710mm | 260-710mm |
| Die-cut Repeat Length | 260-710mm | 260-710mm | 260-710mm |
| Max. Unwinder Diameter | 1524mm | 1524mm | 1524mm |
| Max. Rewinder Diameter | 1524mm | 1524mm | 1524mm |
| Gearing Size | 1/8CP | 1/8CP | 1/8CP |
| Max. Mechanical Speed | 152m/min | 152m/min | 152m/min |
| OD of Web Roller | 100mm | 100mm | 100mm |
| Main Drive | 15-18kw | 20-30kw | 20-30kw |
| Motor |
| Lubricating System | auto | auto | auto |
| Air Pressure | 0.6mp | 0.6mp | 0.6mp |
| Power Required | 380v3ph50hz | 380v3ph50hz | 380v3ph50hz |
Sample Show
